Description

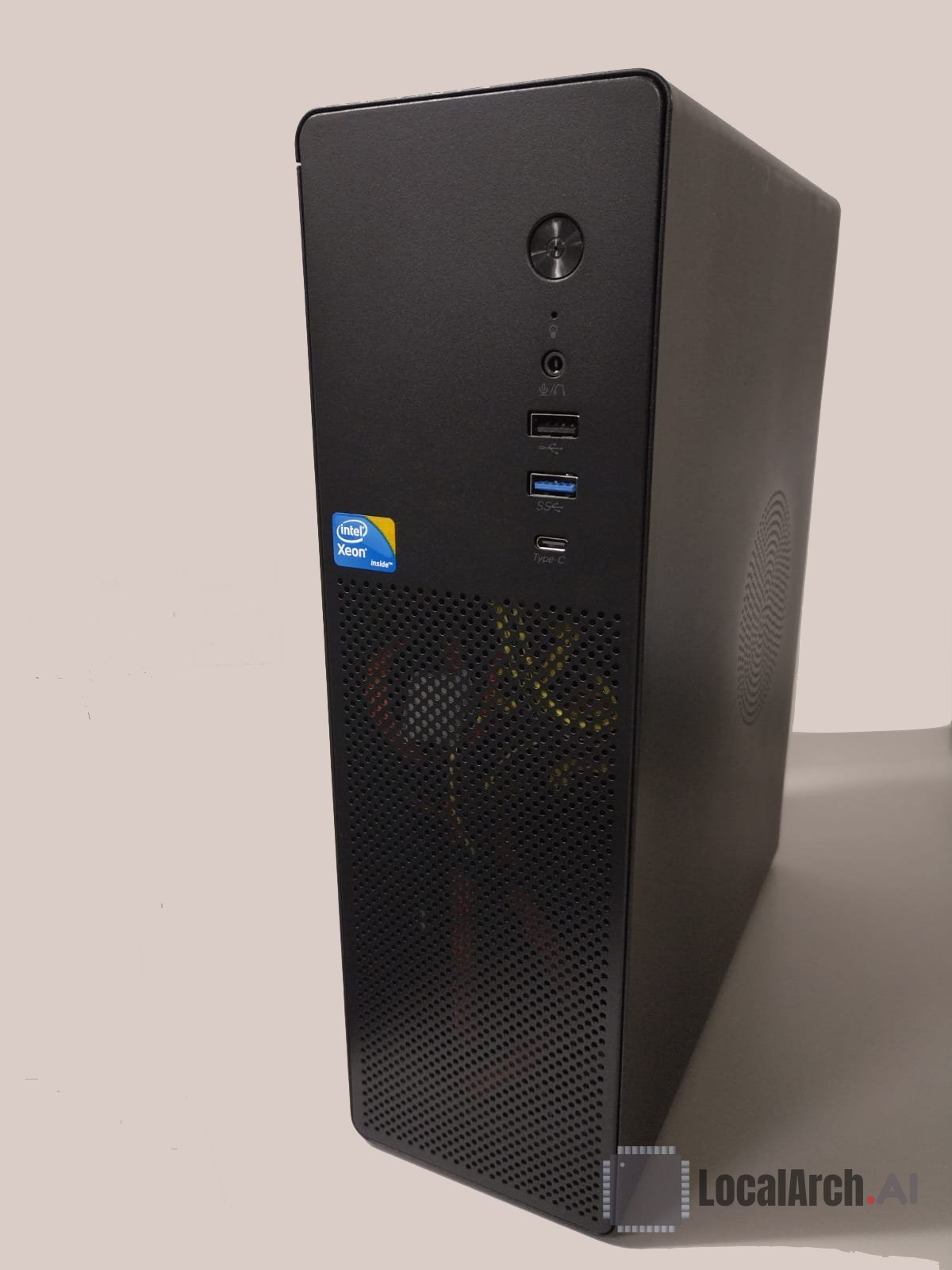

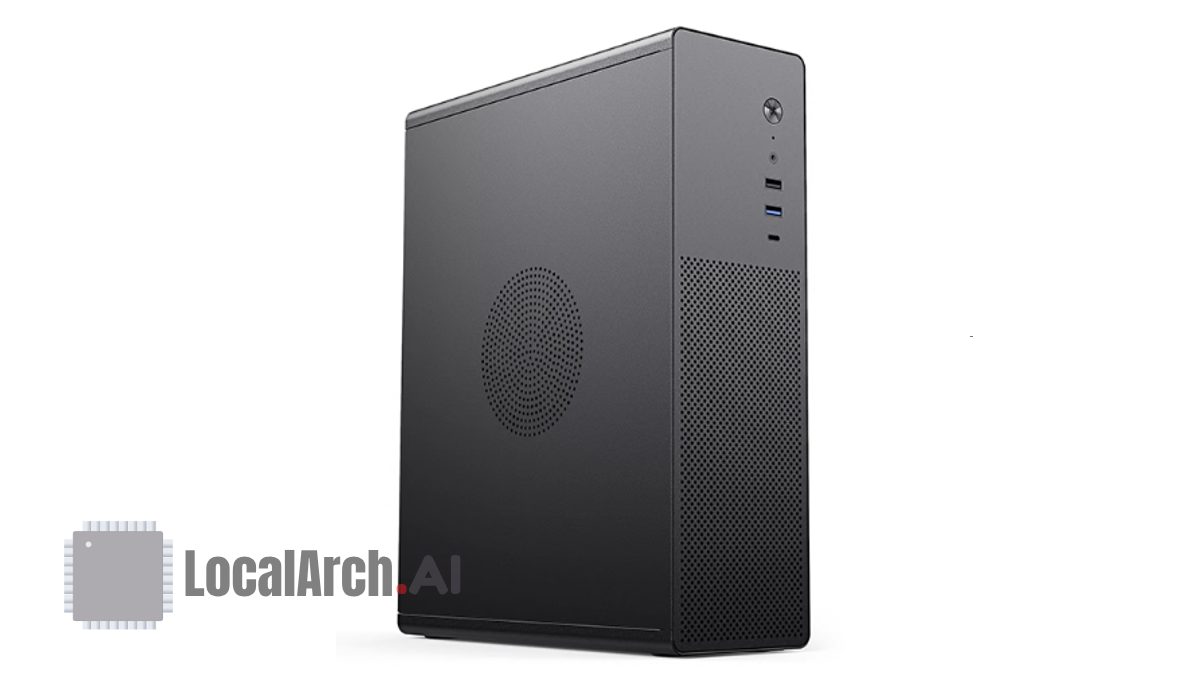

Introducing the NovaEdge Server, a sleek IATX-based compact system in a small desktop-like enclosure with TFX power supply, designed for versatile edge computing, virtualization, and NAS applications. Equipped with a new old stock Intel C612 motherboard, renewed Xeon E5-2618Lv4 CPU, and 64GB DDR4 RAM (max 64GB across 2 slots), it features one NVMe slot (with optional SSD upgrades in various sizes) for your OS, a PCIe x16 slot for expansions, and 10 onboard SATA ports supporting high-capacity drives. With five 2.5-inch bays for added storage flexibility, this server excels in setups like TrueNAS, Proxmox, and more for efficient, scalable performance.
Notes on Pre-order:
We appreciate your interest in our NAS and Server products at localarch.ai, which are now available on a pre-order basis to minimize inventory and ensure efficient supply chain management. Pre-orders are expected to ship within 10-20 business days from the date of purchase. However, due to potential supplier delays or unforeseen circumstances, delivery may extend up to 30 business days—in such cases, we commit to keeping you informed and offering a full refund as an option if preferred, ensuring fairness for all customers.
| CPU | Intel Xeon e5-2618Lv4 (renewed) |
| Brand | GogoStor
(Apart from the CPU is renewed, all components are 100% new.) |
| Memory | |
| · Ram Size | 64 GB ECC REG (2*32GB) |
| · Maximum Capacity | 64GB |
| · Memory Slot | 2 (max. 32GB / slot) |
| Power Supply | 1U/Flex PSU at 400w (80plus) |

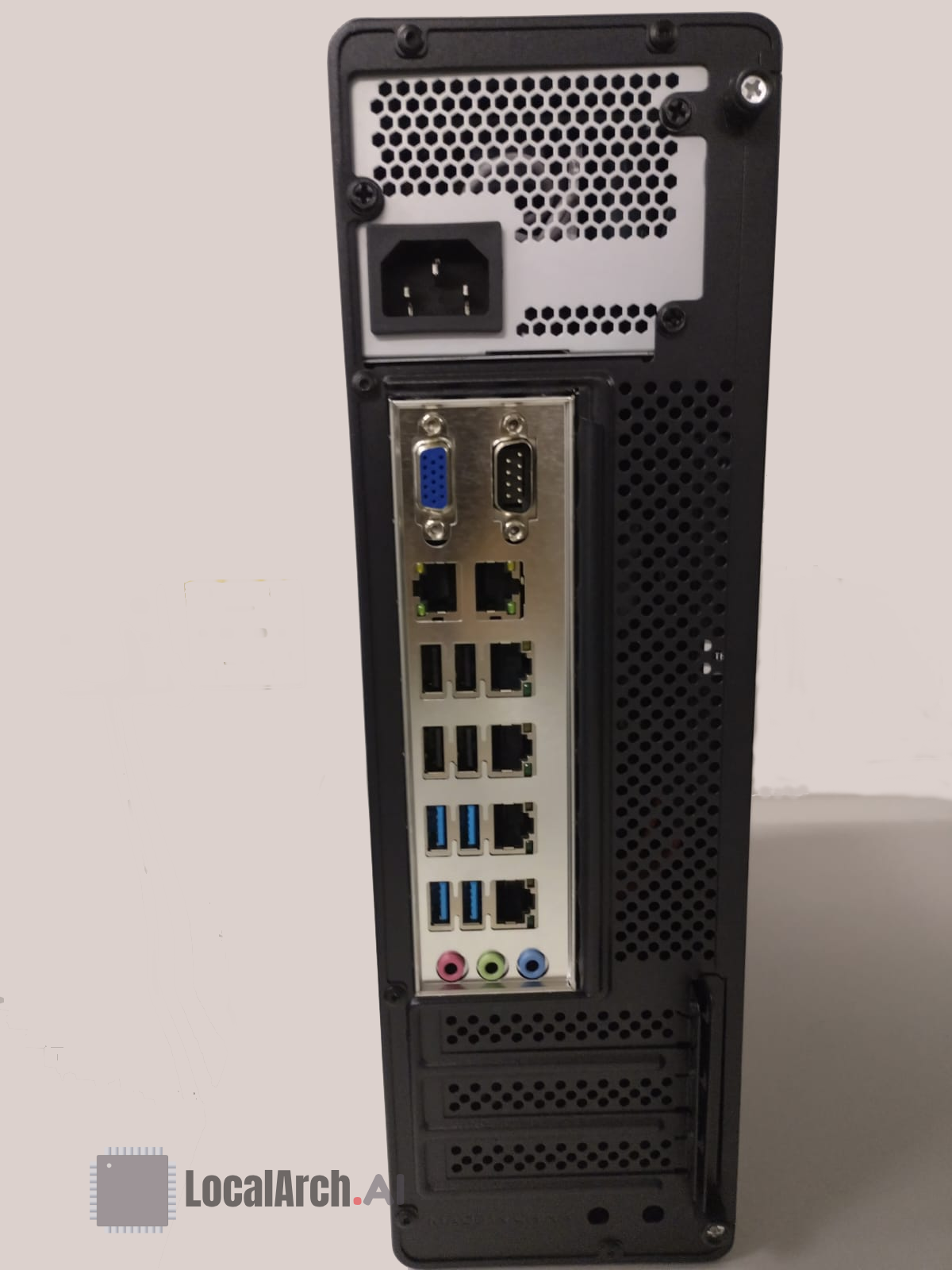

| Video Output Interface | On-board VGA |
| Storage | 1*NVMe 3.0 slot
(Optional: NVMe SSD for selection) |
| Bus Interface | PCIe 3.0 x16 (1 slot) |
| Network Interface | 6*Intel I226V Gigabit network adapters |
| Dimension | 260*100*330mm |
| Other Information | |
| Onboard Expansion slot: | · 1 x PCIE X16 slot
· 2 x M.2 SSD (2 NVMe) |

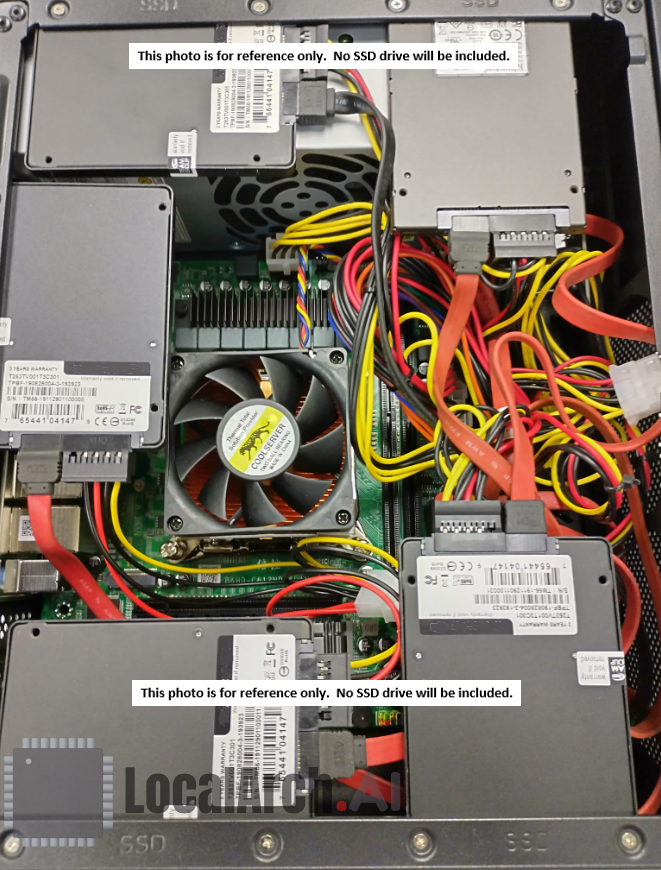

| Onboard Built-in interface: | · 10 x SATA ports
· 1 x 9-Pin Front Panel Switch Pin (FPANEL) · 1 x 4Pin CPU Cooling Fan (CFAN1) · 3 x 4Pin System Cooling fan (SFAN1) · 2 x 3Pin System Cooling fan (SFAN1) · 2 x 2Pin System Cooling fan (SFAN1) · 1 x Built-in COM interface · 1 x FUSB front port (can be transferred to 2 USB2.0 ports) · 1 x FUSB front port (can be converted to 2 USB3.0 ports) · 1 x USB port (can be converted to 1 USB2.0 port) · 1 x TYPE-E interface · 1 x TPM port · 1 x 9Pin Built-in Audio interface (F_AUDIO) · 1 x 8pin ATX interface · 1 x 24pin ATX interface · 1 x 9Pin LAN LED |
| Other Onboard Components
|
Audio Realtek ALC897, supports Line-Out & Line-InI/O chip NUVOTON NCT5585D |
